Wheel Shop

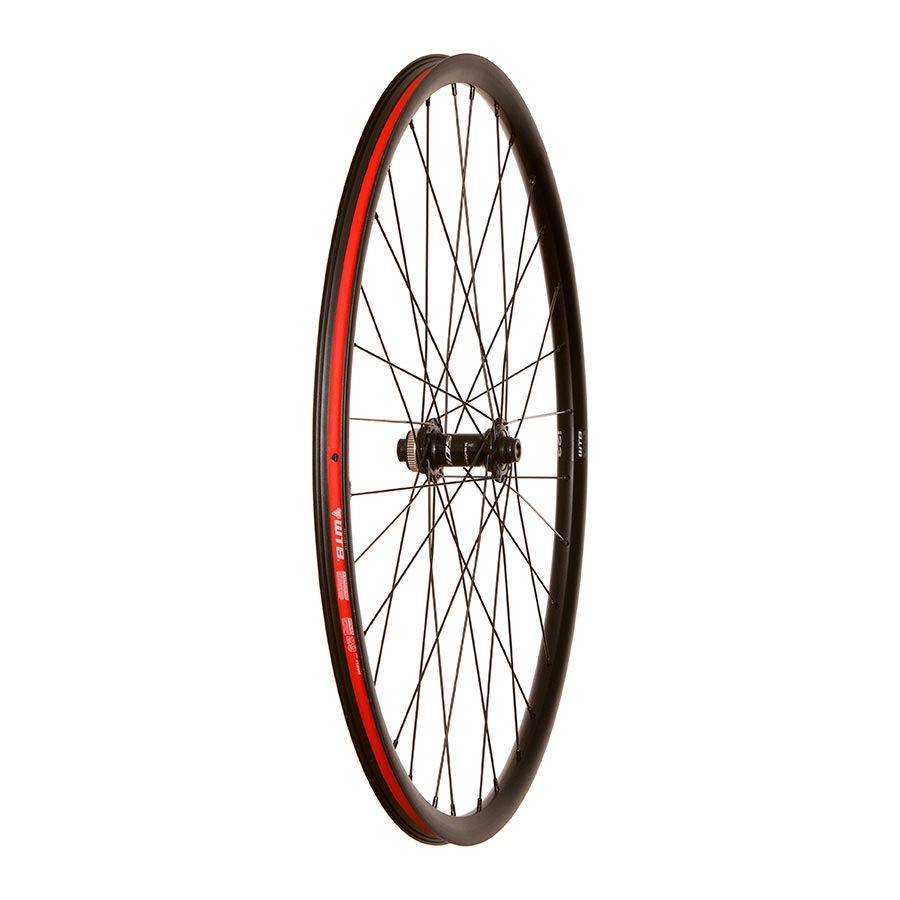

Wheel Shop WTB EZR i23 / Shimano 105 HB-R7070 Wheel Front 700C / 622 Holes: 32 12mm TA 100mm Disc Center Lock SKU: H041829-01-700

$229.99 USD
$229.99 USD
In stock and ready to ship from our warehouse.

**Complete Bikes and overweight products will incur addtional shipping charges. We will contact you with an accurate estimate.**
  • Rims: WTB EZR i23 700C
  • ETRTO 622-23
  • Inner width: 23mm
  • Made from 6069 series Aluminum alloy
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Stronger and lighter rim using a sleeved joint
  • Disc Brake Only
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip (included)
  • 32 holes

  • Front hub: Shimano 105 HB-R7070
  • 12x100mm E-THRU (Axle not included)
  • Center Lock Disc Mount
  • Polished angular contact bearings with Internal Grease Sleeve
  • Contact sealed hub

  • Rear hub: Shimano 105 FH-R7070
  • 12x142mm E-THRU (Axle not included)
  • Center Lock Disc Mount
  • Polished angular contact bearings with Internal Grease Sleeve
  • Contact sealed hub and freehub body
  • Compatible with 11 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

  • Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
    • TECH SPECS
    Rim Construction Double wall Sleeved
    Rim Drilling 32
    Rim inner width range 22-27.9mm
    Position Front
    Rim Material Aluminum
    Wheel-Brake Comp. Disc Center Lock
    Rim Model WTB EZR i23
    Valve Presta
    Axle Type 12mm TA
    Rim Internal Width 23mm
    Wheel Tire Type Tubeless Compatible
    Skewers Included No
    Spoke Type Sapim Race
    Hub Spacing 100mm
    Hub Model Shimano 105 HB-R7070
    Rim Color Black
    Wheel Diameter/ISO 700C / 622
