Wheel Shop

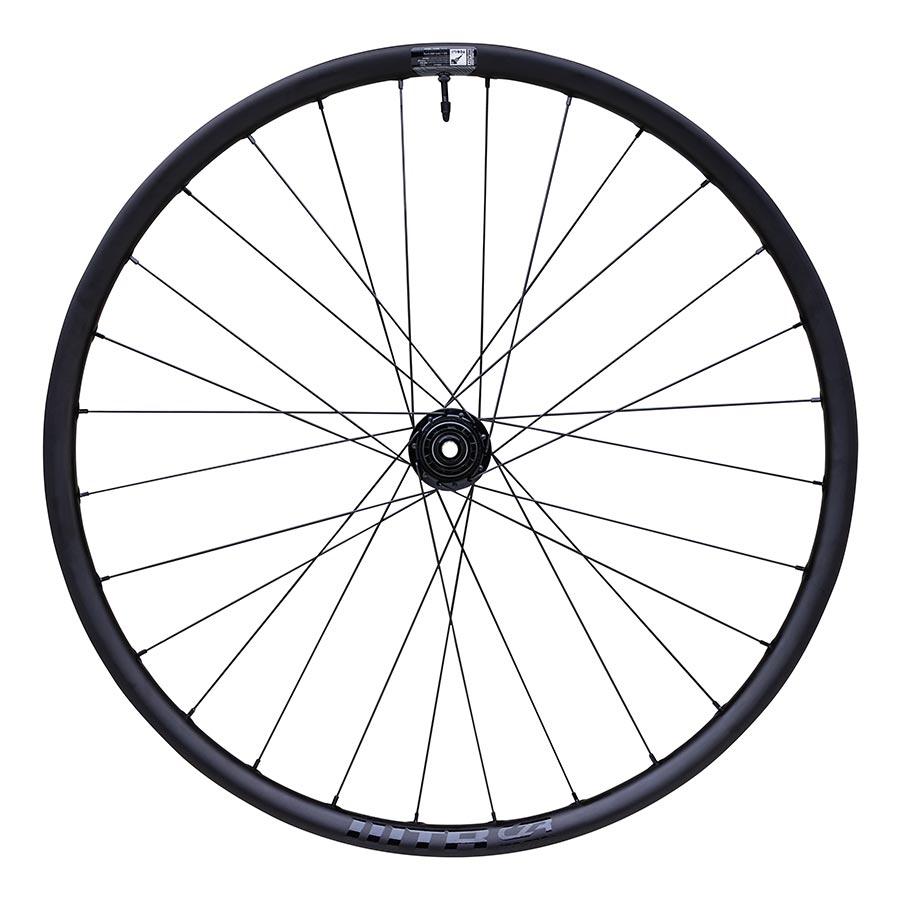

Wheel Shop WTB CZR i23 Carbon / Shimano RS770 Wheel Front and Rear 700C / 622 Holes: 28 F: 12x100mm R: 12x142mm Disc Center Lock / IS 6-Bolt Shimano HG 11 Pair SKU: H041830-01-700

$1,659.99 USD
$1,659.99 USD
  • Rims: WTB CZR i23 Carbon 700C
  • ETRTO 622-23
  • Inner width: 23mm
  • Torayca T700 UD carbon fiber for stiffness and compliance
  • Asymetric and angled spoke hole drilling
  • Externally reinforced spoke bed
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible

  • 28 holes

  • Front hub: Shimano HB-RS770 Ultegra series
  • 12x100mm E-THRU (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub

  • Rear hub: Shimano FH-RS770 Ultegra series
  • 12x142mm E-THRU (Axle not included)
  • Center Lock (6-Bolt adapter included)
  • Polished angular contact bearings
  • Contact sealed hub and freehub body
  • Compatible with 11 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

  • Sold in Pair, including:
  • Tubeless Valve (x2)

  • Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Ni
    • TECH SPECS
    Freehub Body Shimano HG 11
    Position Front and Rear
    Rim inner width range 22-27.9mm
    Hub Model Shimano RS770
    Rim Construction Double wall
    Rim Drilling 28
    Wheel Tire Type Tubeless Compatible
    Rim Internal Width 23mm
    Skewers Included No
    Spoke Type Sapim Race
    Wheel-Brake Comp. Disc Center Lock / IS 6-Bolt
    Wheel Weight 1512g (pair)
    Wheel Diameter/ISO 700C / 622
    Rim Material Carbon
    Hub Spacing F: 100 R: 142
    Rim Model WTB CZR i23
    Axle Type F: 12mm R: 12mm
    Rim Color Black
    Valve Presta
