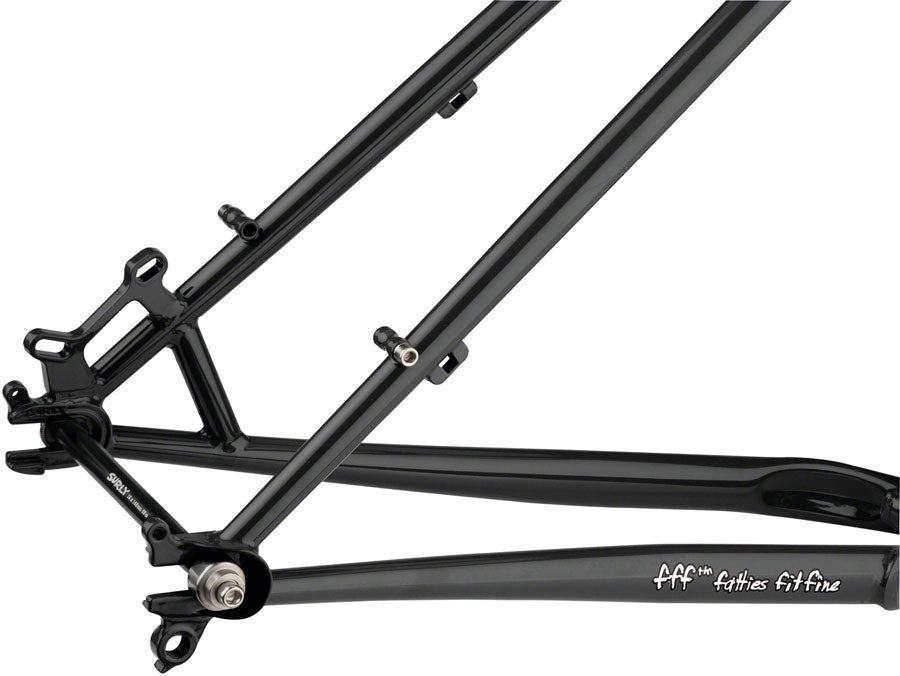

Surly Karate Monkey Frameset - 27.5" Steel Hi-Viz Black X-Large SKU: FM0319

Regular price $999.00 USD
Regular price Sale price $999.00 USD
Surly Karate Monkey Frameset - 27.5" Steel Hi-Viz Black X-Large. The Karate Monkey features updated progressive trail geometry our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors with multiple drivetrain and wheel size configurations.
  • 100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
  • The tubeset uses the same trumpet tubes found on Instigator 2.0 frame
  • Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142 148 12mm thru as well as 135mm w/ 10/12 washer
  • Internal dropper seatpost routing with 30.9mm seat tube ID
  • Clearance for 29 x 2.55 or 27.5 x 3 tires
    Platform Karate Monkey
    Mfg Size X-Large
    TT (Effective) 660
    Frame Type Rigid
    Fork Type Rigid
    Wheel Size 27.5+
    Wheel Size 29"
    Frame Material Steel
    Fork Material Steel
    Color Hi-Viz Black
    Defined Color Black
    Front Axle 15mm Thru x 110mm
    Rear Axle 12mm Thru x 148mm
    Brake Type Disc
