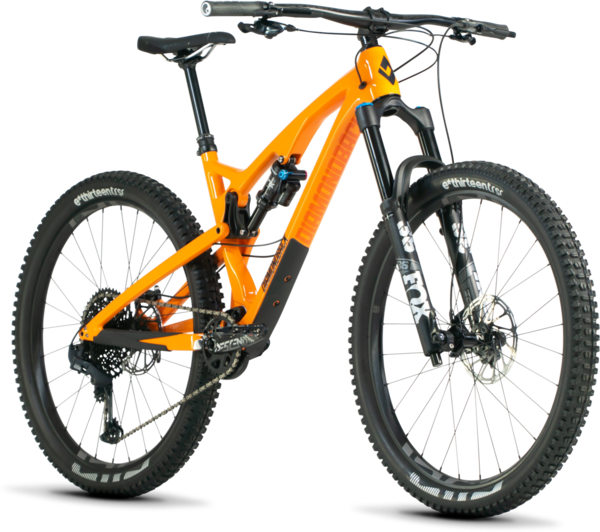

Diamondback Release 5C / 27.5
Diamondback Release 5C / 27.5
We pulled out all the stops on our flagship full-suspension trail bike.
You can't have it all…Really? Nobody told that to the Release 5C. Our top-shelf trail bike is the embodiment of new-school technology. Thanks to our Level Link suspension, the Release 5 C absolutely levels the kind of drops and rock gardens that stymie bikes with even more suspension travel. At the same time, our patent-pending design allows the Release to accelerate and climb with the kind of blazing efficiency you'd normally expect from a wispy, featherweight race rig.
The Release 5C, in a nutshell, is the perfect all-rounder. The bike's modern geometry—long in the front, short in the rear, low in the bottom bracket—lends the bike stability at high speeds without sacrificing agility when the trails get tight. What's more, we've decked this machine out with a peerless parts kit that includes the absolutely bomber Fox 36 Performance Elite Float fork and Fox Performance Elite Float DPX2 rear shock, an ultra-precise SRAM GX Eagle 12-speed drivetrain, a wheelset with e*thirteen LG1 EN rims and Novatec hubs, and quick-stopping SRAM G2 RS hydraulic disc brakes with 180mm rotors. A KS LEV Integra dropper post and Race Face cockpit components round out the stellar package.
|Frame||Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs|

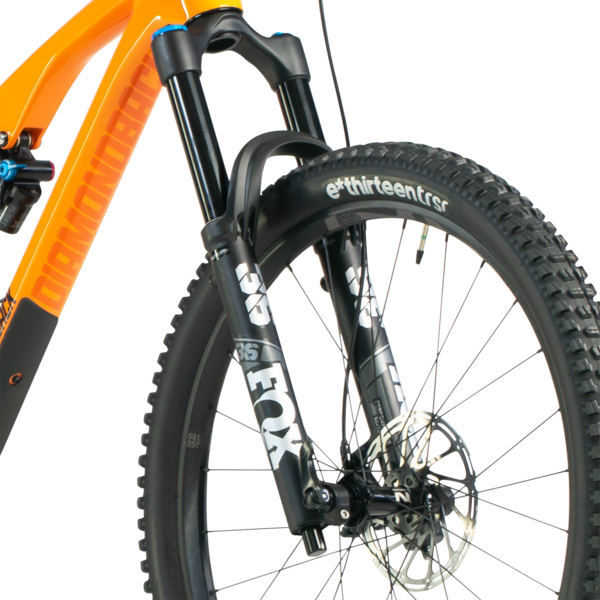

|Fork||Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle|
|Rear Shock||Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width|
|Rims||e*thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h|
|Hubs||Front: Novatec XD641, 32h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear: Novatec XD642, 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
|Spokes||2.0/1.8/2.0 Butted Stainless Steel|
|Tires||e*thirteen TRS Race SS 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound|
|Bottom Bracket||SRAM DUB Outboard Bearing|

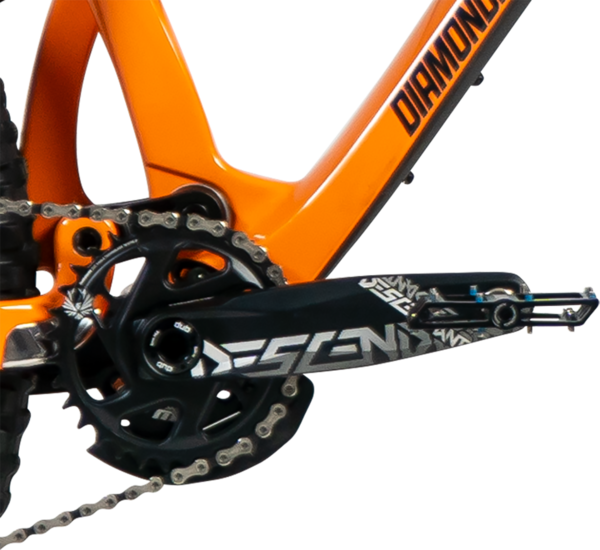

|Crankset||SRAM Descendant 7K Eagle w/32T Direct Mount|

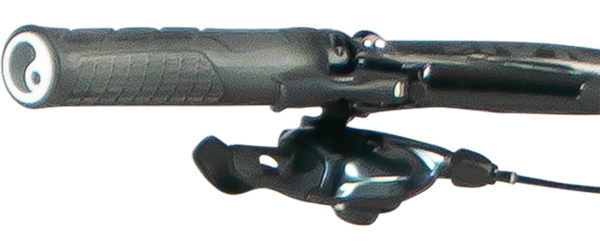

|Shifters||SRAM GX Eagle, 12 Speed|
|Front Derailleur||MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05|

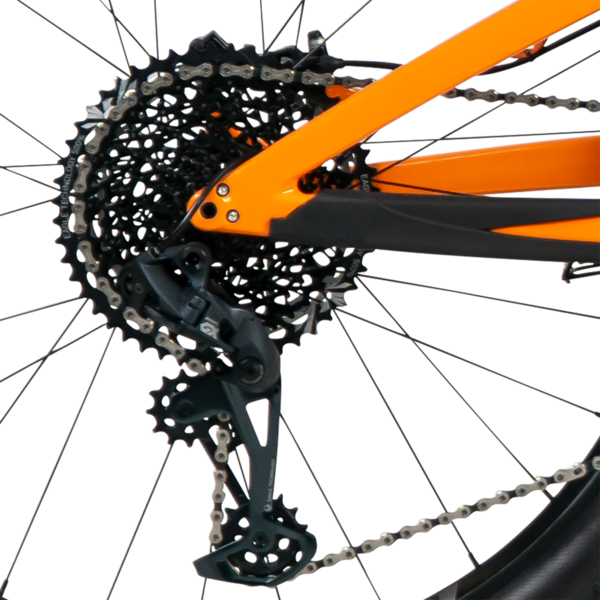

|Rear Derailleur||SRAM GX Eagle, 12 Speed|
|Cassette/Freewheel||SRAM XG-1275 Eagle, 12 Speed, 10-50T|
|Chain||SRAM GX Eagle, 12 Speed|
|Brakes||SRAM G2 RS, 4 Piston, Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors|
|Brake Levers||SRAM G2 RS|
|Handlebars||Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore|
|Tape/Grips||Ergon GE10 Evo Lock-On|
|Stem||Race Face Æffect R 35, 40mm Reach, 35mm Bar Bore|
|Headset||FSA No. 57 Sealed Cartridge|

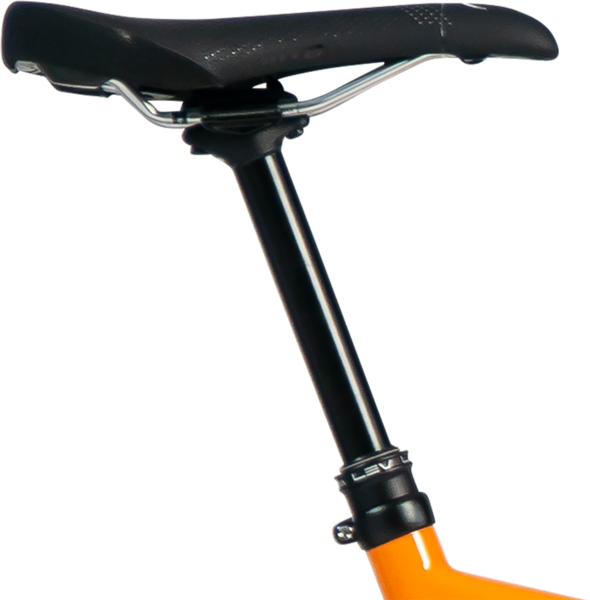

|Seatpost||KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm|
|Saddle||WTB Volt Chromoly SL|
|Pedals||DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins|
|Accessories & Extras||Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste|
* Subject to change without notice.
