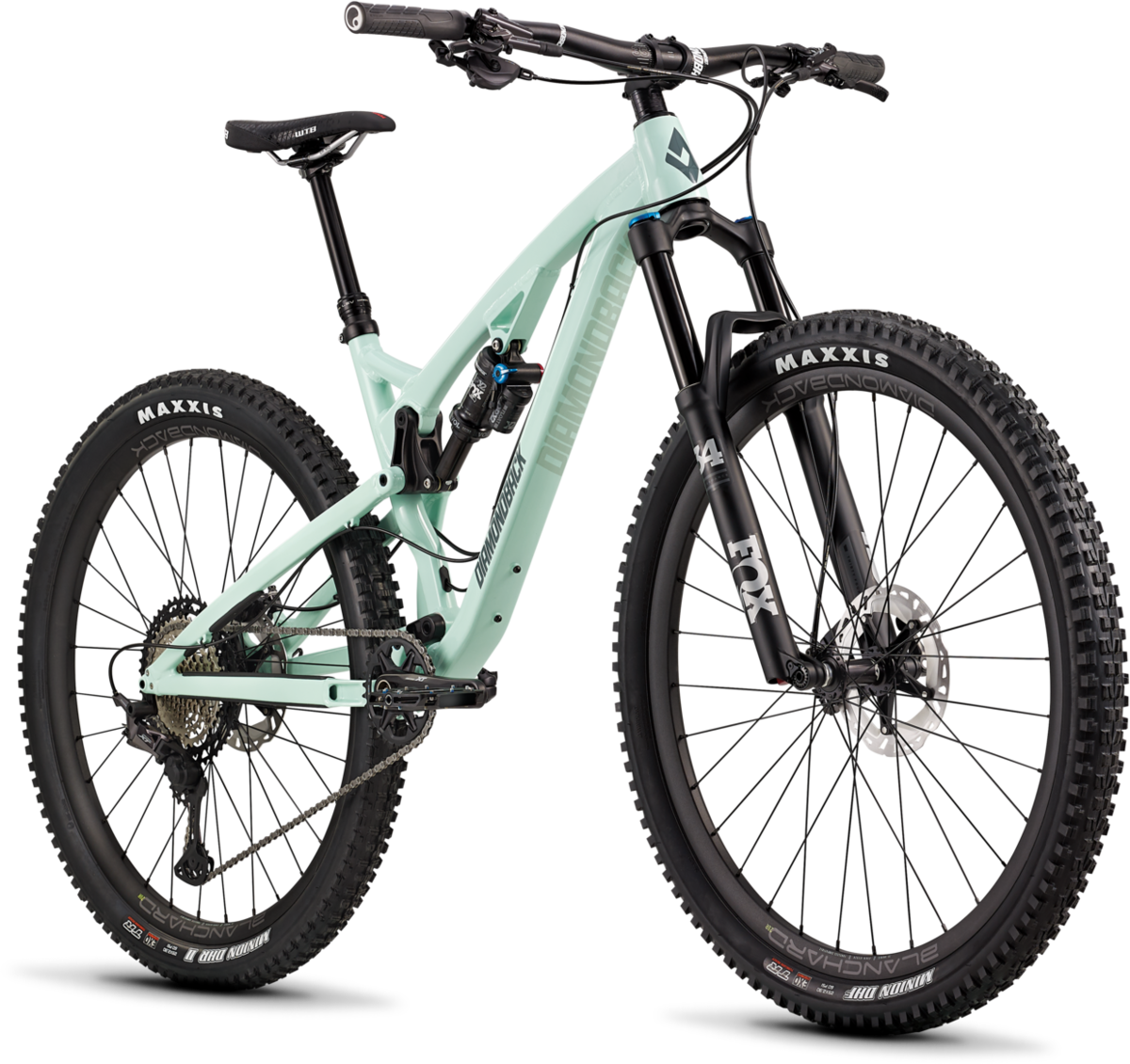

Diamondback Release 3 / 29 SKU: 210000048646
Details
When you spend hours in the saddle getting to a jaw-dropping descent, your bike should 100 percent rip. Those are the days for the Release 29 3. This aluminum trail bike is built on the same 130mm-travel Level Link suspension platform as its smaller-wheeled siblings, the Release and Catch. We've adjusted the geometry for 29-inch wheels while keeping the same playful attitude of all our Level Link bikes. A Shimano XT drivetrain paired with Shimano XT cranks provides crisp shifts and unflinching power transfer. The Fox Performance Float DPX2 rear shock offers improved performance on the most aggressive descents plus a greater compression adjustment range. For truly hairy descents, the 140mm travel Fox 34 Performance fork and Shimano XT brakes keep you laser-focused.
Specs
Frame | Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
---|---|

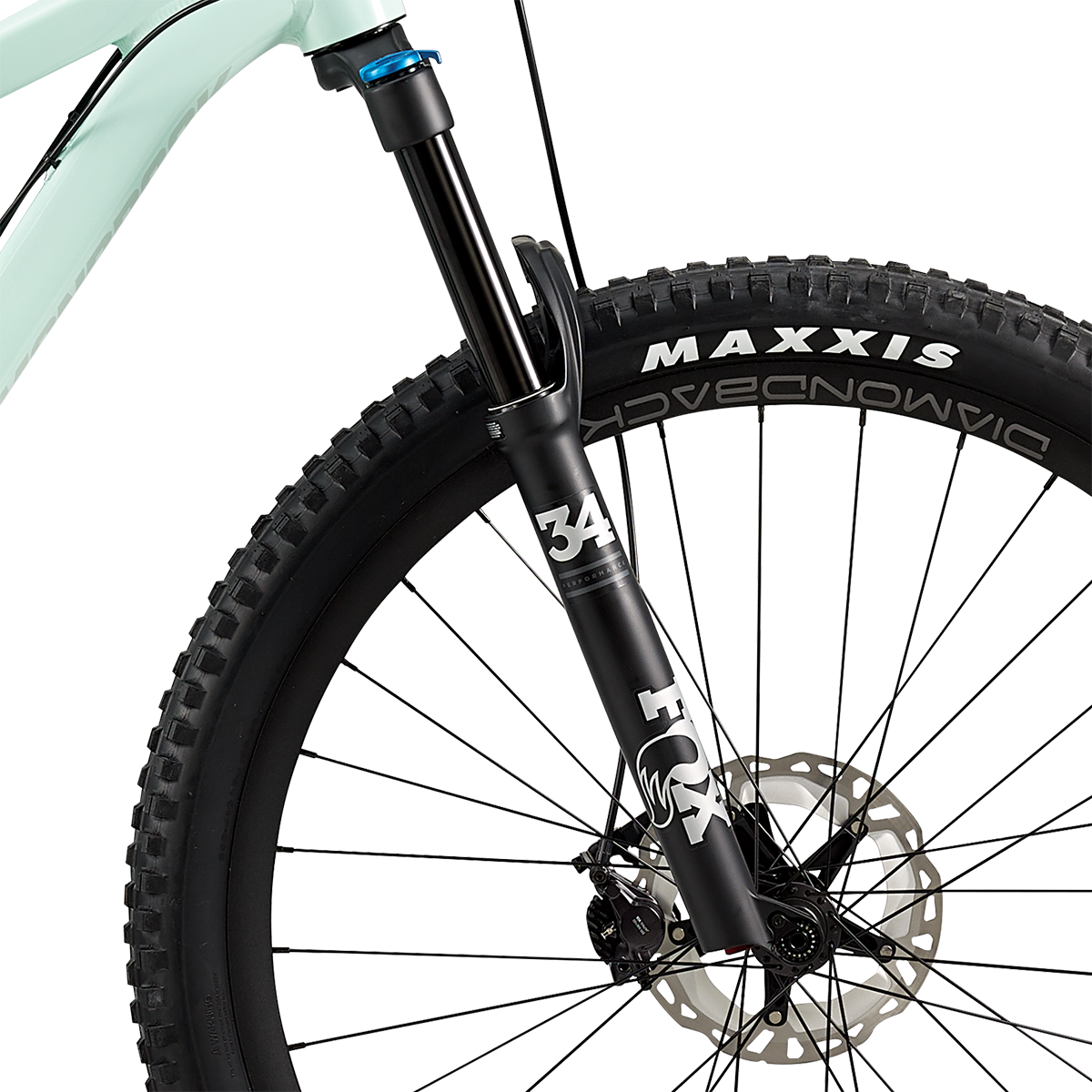

Fork | Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle |
Rear Shock | Fox Performance Float DPX2, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width |
Rims | Diamondback Blanchard 28R, Tubeless ready, 32h |
Spokes | 2.0/1.8/2.0 Double Butted Stainless Steel |
Tires | Front: Maxxis Minion DHF 29x2.3" EXO, TLR, Folding Rear: Maxxis Minion DHR 29x2.3" EXO, TLR, Folding |
Bottom Bracket | Shimano BB-52 |

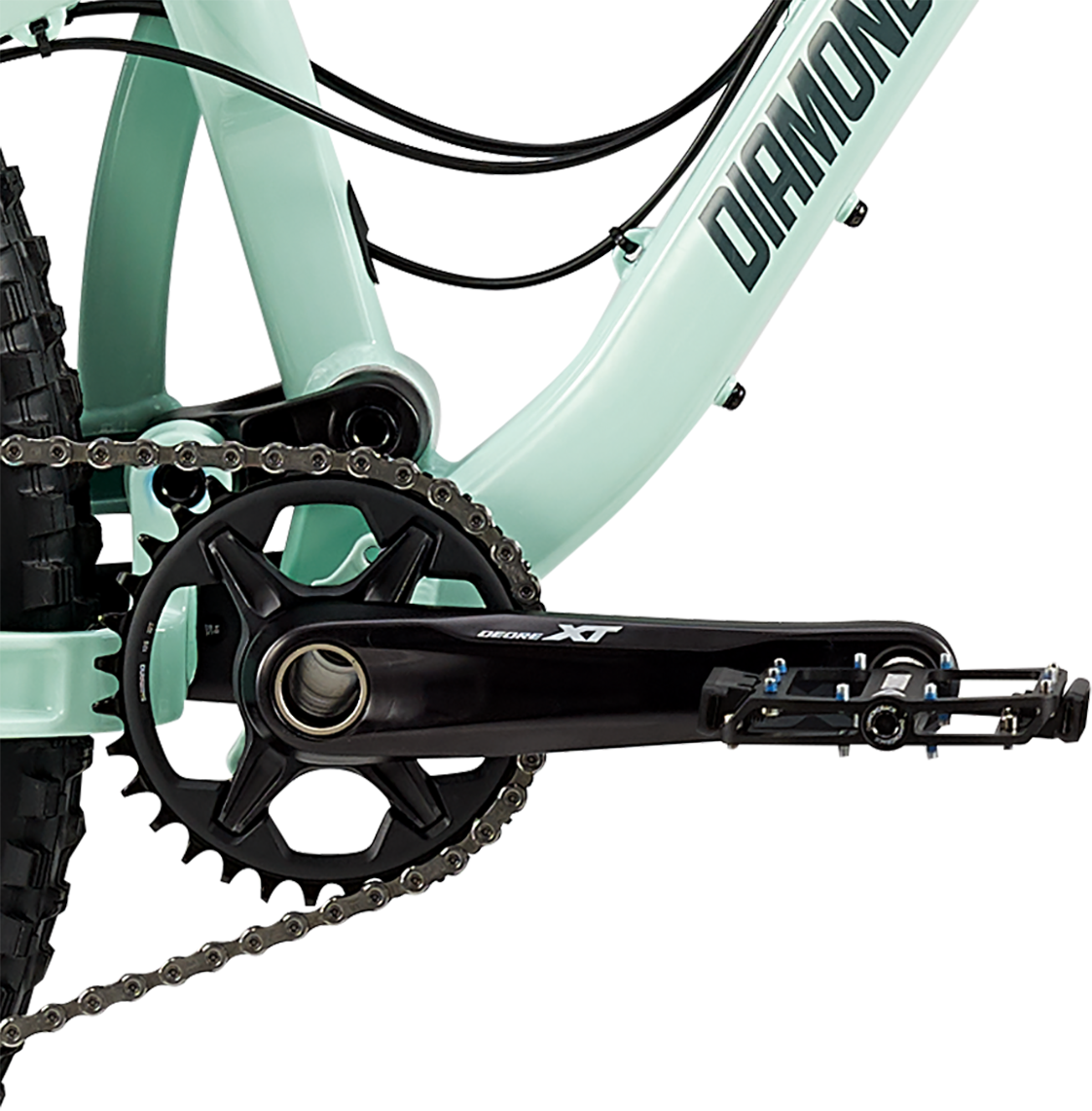

Crankset | Shimano XT M8100, 32T |
Shifters | Shimano XT M8100, 12 Speed |

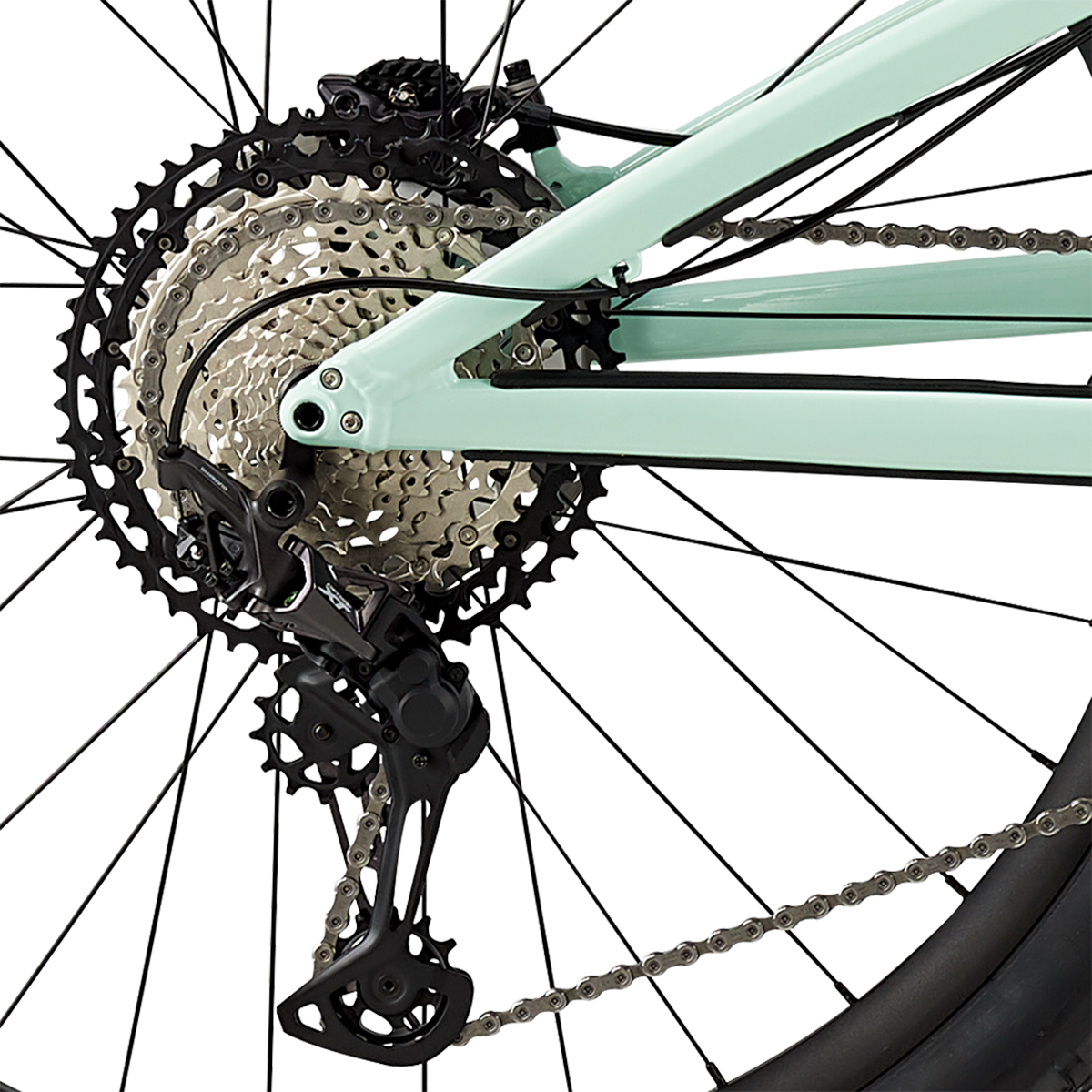

Rear Derailleur | Shimano XT M8100 Shadow Plus, 12 Speed SGS |
Cassette/Freewheel | Shimano XT M8100 Cassette, 12 Speed, 10-51T |
Chain | Shimano XT M8100, 12 Speed |
Brakes | Shimano XT M8100, w/180mm Front /180mm Rear, RT800 Rotors |
Brake Levers | Shimano XT M8100 |

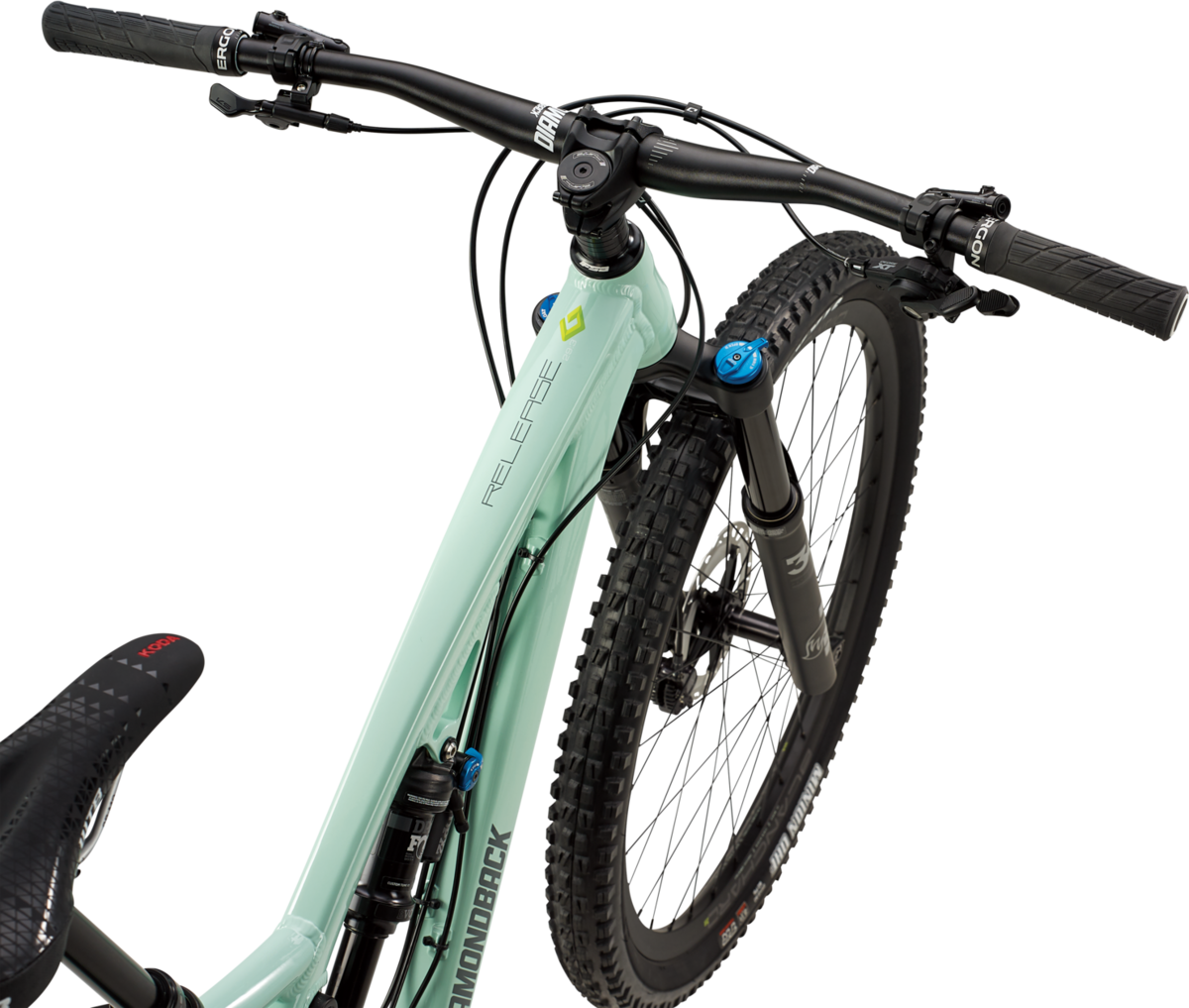

Handlebars | DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore |
Tape/Grips | Ergon GE10 Evo Lock-On |
Stem | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
Headset | FSA No. 57 Sealed Cartridge |

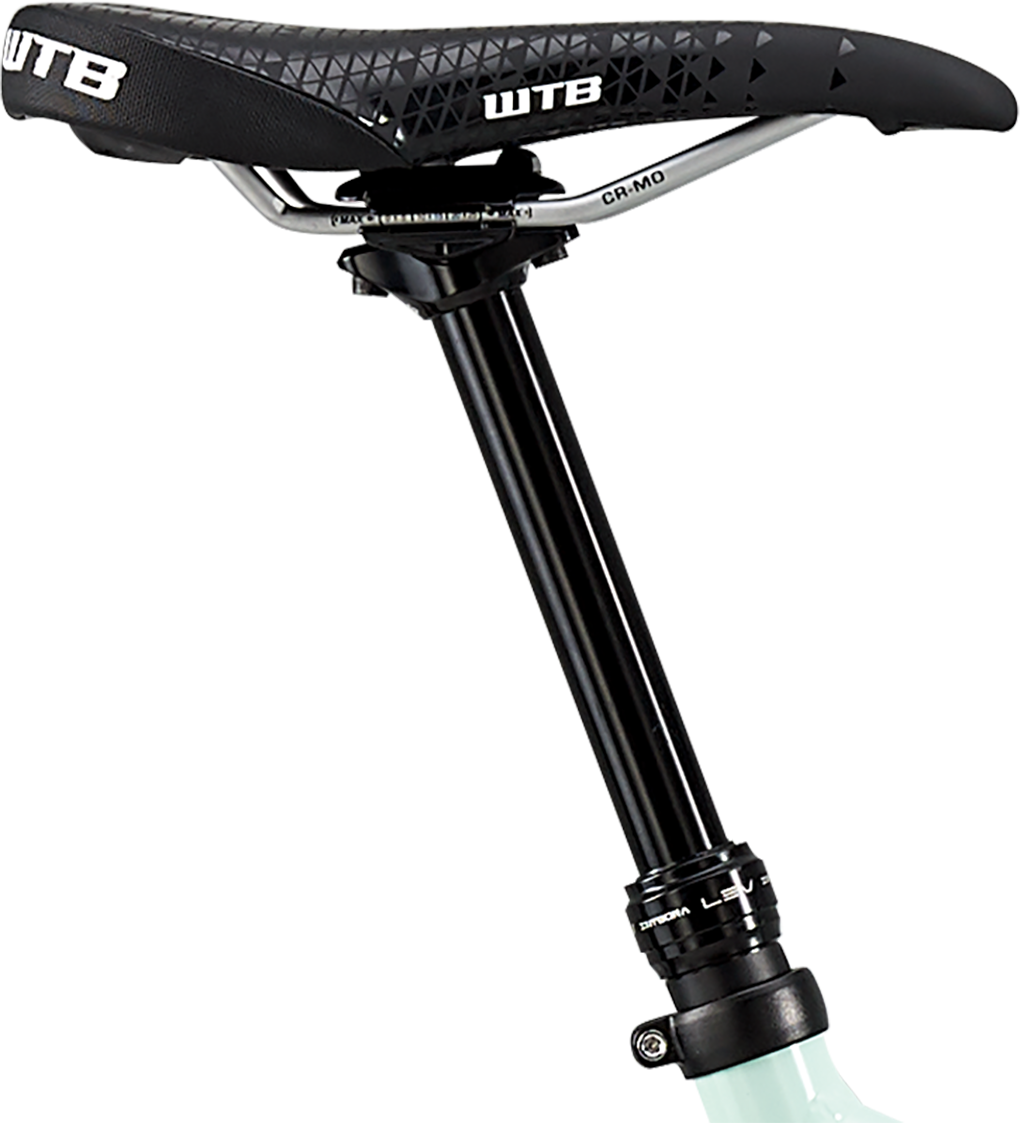

Seatpost | KS LEV Integra, Internal Dropper, 31.6mm w/Southpaw Remote |
Saddle | WTB Koda Race |
Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins |
Accessories & Extras | Tool Kit, DB Shock Pump, DB Mud Guard, Spare RD Hanger, Carbon Paste |
