Works Components

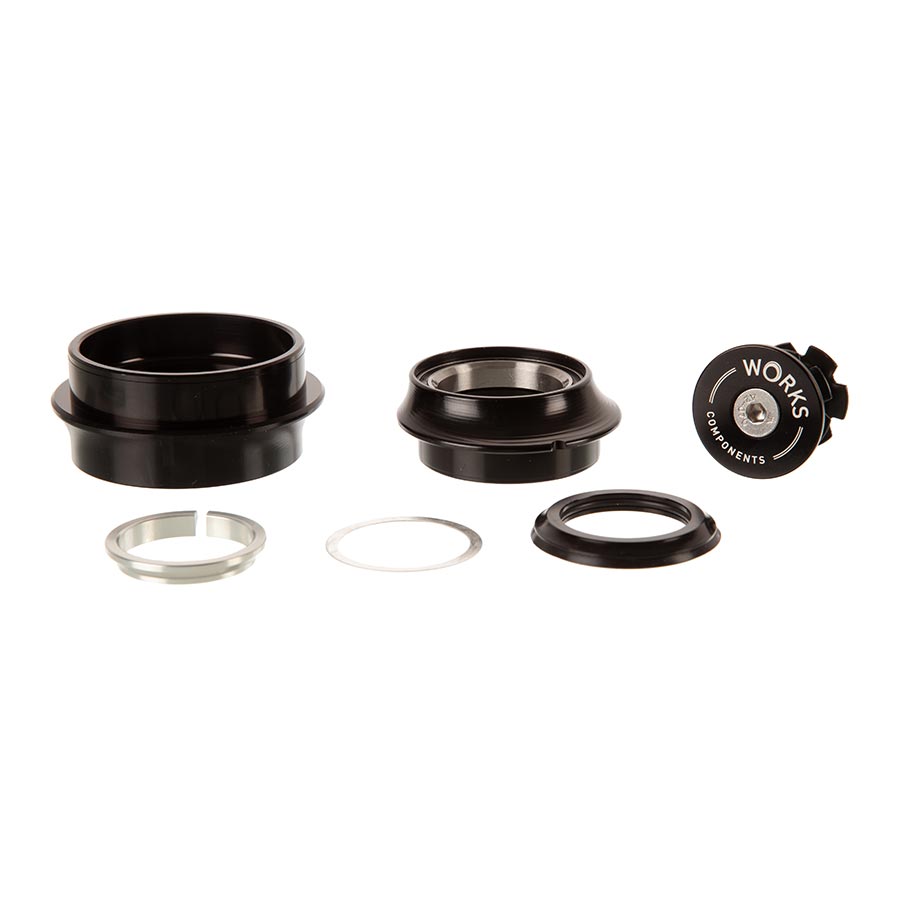

Works Components EC44-EC56 Reach Adjust Headset : EC44/28.6 | EC56/40 ZS External threadless Complete Black SKU: H150555-01

$99.99 USD
$99.99 USD
  • Headset will allow you to alter your top-tube length by +/- 5mm.
  • Upper cup insertion depth: 9mm
  • Lower cup insertion depth: 14mm
  • Upper cup Stack height: 11mm - Total upper stack height including bearing cover: 15mm
  • Lower cup Stack height: 3.5mm
  • Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
  • Lower Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
  • To suit standard 1 1/8" forks.
  • Proudly machined in the UK, anodised locally in black from 6082 T6 aluminium.
  • Split type 7075-T6 aluminium crown race for simple, tool free installation
  • Headset comes complete with top-cap (star-nut included), bearings and crown race - all parts required for fitment
    • TECH SPECS
    SHIS Upper EC44/28.6
    Stack Height 15
    Upper Cup 41mm
    Headset Weight 140g
    Material 7075-T6 Aluminum
    Primary Color Black
    Headset Position Complete
    S.H.I.S. EC44/28.6 | EC56/40
    Steerer Tube 1-1/8-1.5
    Headset Type ZS External threadless
    Bearing Grade ACB Sealed
    Headset Reach Adjustment 5mm
    Lower Cup 56mm
    Misc 5mm
    SHIS Lower EC56/40/H15
